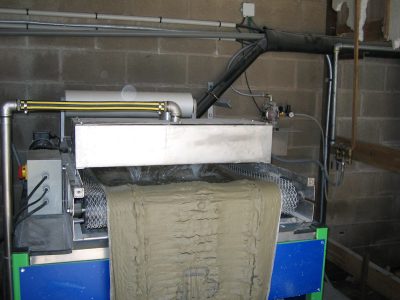

Belt skimmer to filter oil and grease produced by cleaning and degreasing parts-Aspifloc® TS Skimmer HP
Processing station and reuse of the wash solution or degreasing in high pressure
Sludge separation (painting ZING) after flocculation
For more information about our product, download our technical sheet in PDF format.
Advantages
Features
On option
Advantages
- Maximum degreasing quality maintained due to constant filtration of treatment solution
- Significant reduction in water consumption of over 40% compared to other systems.
- Lower running costs – zero discharge.
- Complete and total cleaning of all sizes and shapes of material.
- Can be used for any washing/degreasing application within the surface treatment sector (degreasing before painting,degreasing, pickling before maintenance)
Features
- Skimmer:
a band with retention tray stainless steel 304…190 liters
- Height: 1520 mm
- Length: 1605 mm
- Width: 1404 mm
- Tray composite resin:
- Height: 750 mm
- Width: 2704 mm
- Length: 1404 mm
- Pumps:
- 1 pneumatic ball
- Flow pumps: 76 Liters/minute
- Electric power: 0.19 Kw
- Consumption one pump in air 2 low: 60 liters per minute
- Dimension of the carpet:
100mm x 700mm
- Size of the sludge bin:
- Length: 970 mm
- Width: 300 mm
- Height: 500 mm
- Capacity of the sludge tank:
145 liters
- Temperature of working:
5 to 70 °C
- Range of toll:
0 to 15
- Ability to purification of fluids with a viscosity:
90 to 120 Liters per minute of 40 cst
- Operating mode:
- Recovery of solid materials, filtration by filter de-oiling + band. Reuse of effluent after microfiltration and deoiling.
On option
- Potential for releases to the mains drainage.
